Product parameter

Product parameter

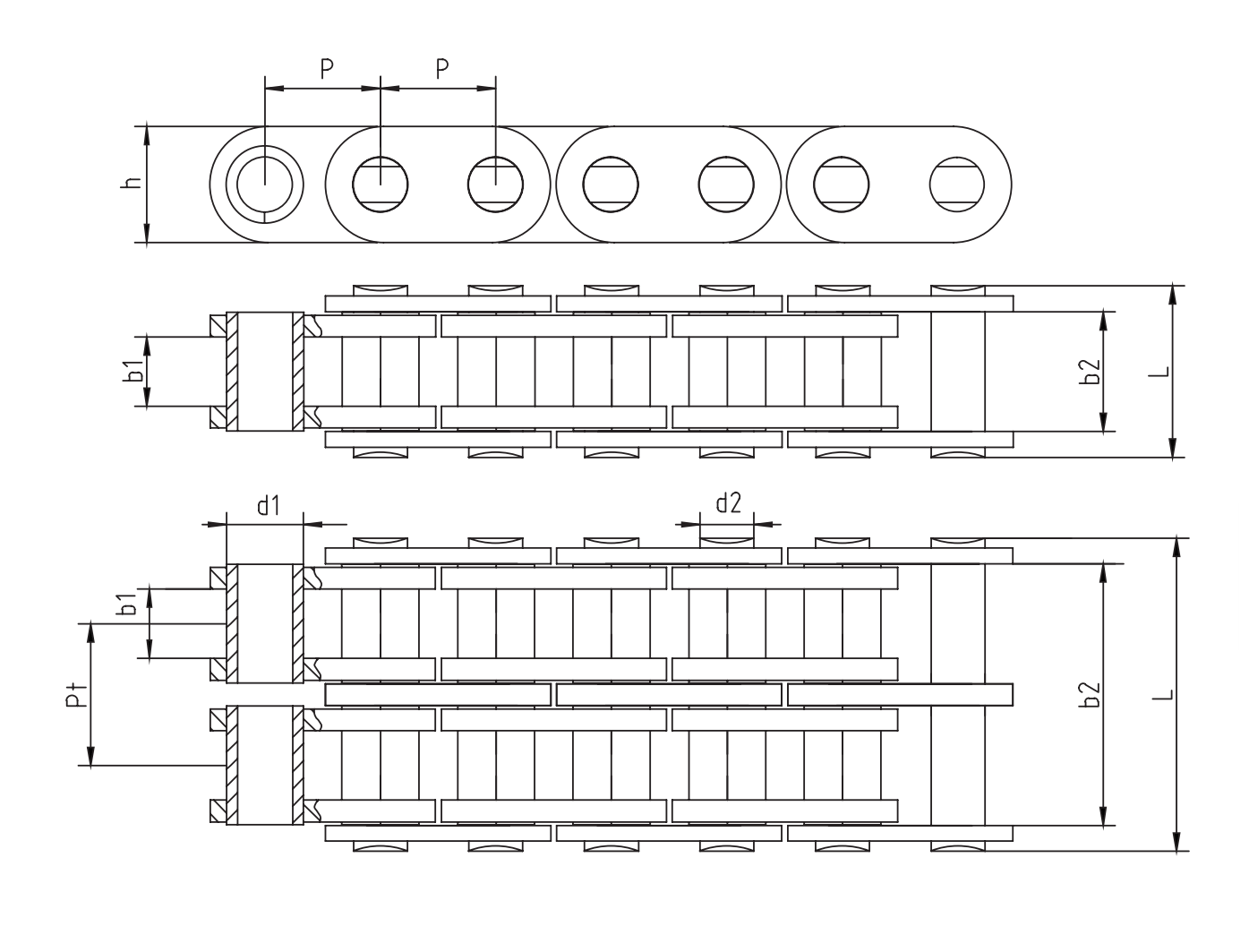

CHOHO Chain No.	Pitch	Row pitch	Roller diameter	The inner section is wide	Pin diameter	Plate height	Outer section wide inside	Pin length	Tensile strength	Weight per meter
	P	Pt	d1 max	b1 min	d2 max	h max	b2 min	L max	Q min	q
	mm	mm	mm	mm	mm	mm	mm	mm	KN	kg/m
04MF1-1	7	/	4	3.5	2.7	6.8	6.24	9.7	6.86KN	0.27
05CF8-1	8	/	4.75	4	3.15	7.6	5.6	11.6	8.5KN	0.35
06CF10-2	9.525	9.62	6.35	4.28	4.45	9.6	17.92	21.6	21KN	0.90
06CF11-1	9.525	/	6.35	3.8	4.45	9.6	6.7	10.4	10KN	0.43
06CF11-2	9.525	8.3	6.35	3.8	4.45	9.6	14.9	18.4	20KN	0.8

* For more models, please consult customer service
